Graham Audio LS6f

Graham Audio LS6f

from 2,395.00

The LS6f is Graham Audio's hotly anticipated floor-standing version of its exceptional LS6 design. They deliver an easy, effortless, supremely natural sound which is guaranteed to make you smile.

#contact

#links

#share

Options:
Quantity:
Add To Cart

Additional Information

Product Details

Following the success of the Graham Audio LS3/5 and LS5/9, the team at Graham Audio was curious to discover what could be done with a cabinet that was sized somewhere between the two.

The result is the Chartwell LS6, designed by Derek Hughes. A custom built 6 inch long-throw bass drive unit mated to a compact 17 litre cabinet gives bass extension and power handling that is comparable to the LS5/9. The bespoke 19mm dome tweeter extends to beyond 20kHz. The overall response retains the smoothness of both the LS3/5 and LS5/9.

A large rear mounted port gives effortless bass, while allowing us to minimise the size of the cabinet to allow it to blend easily into typical domestic environments.

A sophisticated crossover network blends the two units and equalises the overall response for optimum performance in free space. A switch on the front baffle adjusts the tweeter level to +1dB or +2dB. This can be useful for situations where the listening position is off axis.

In common with all Graham loudspeakers, the cabinet uses the classic BBC "thinwall" construction, where the panels are mass-loaded to ensure that resonances are moved away from the critical mid-range region, and a layer of Rockwool is held in place by fabric to provide air damping. Hand-matched veneers are applied and finished to a very high standard. The grille is carefully designed to minimise diffraction effects and is held in place by concealed rare-earth magnets.

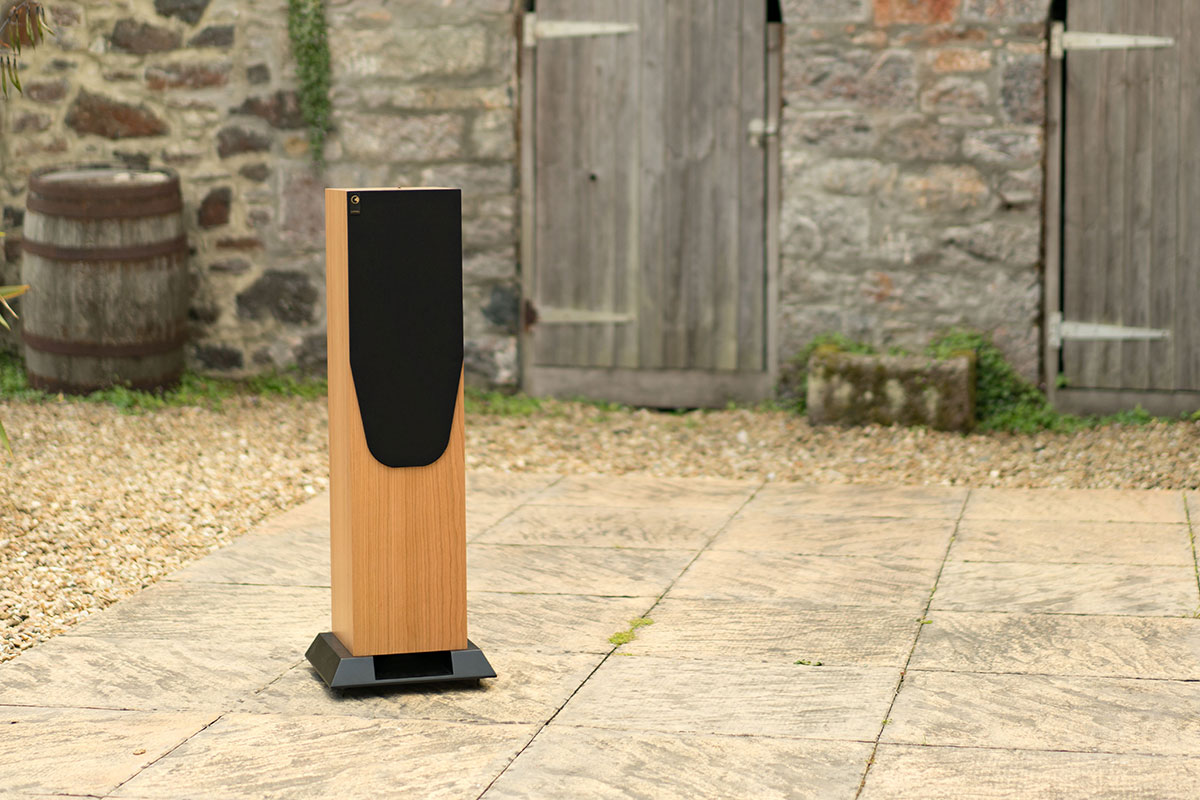

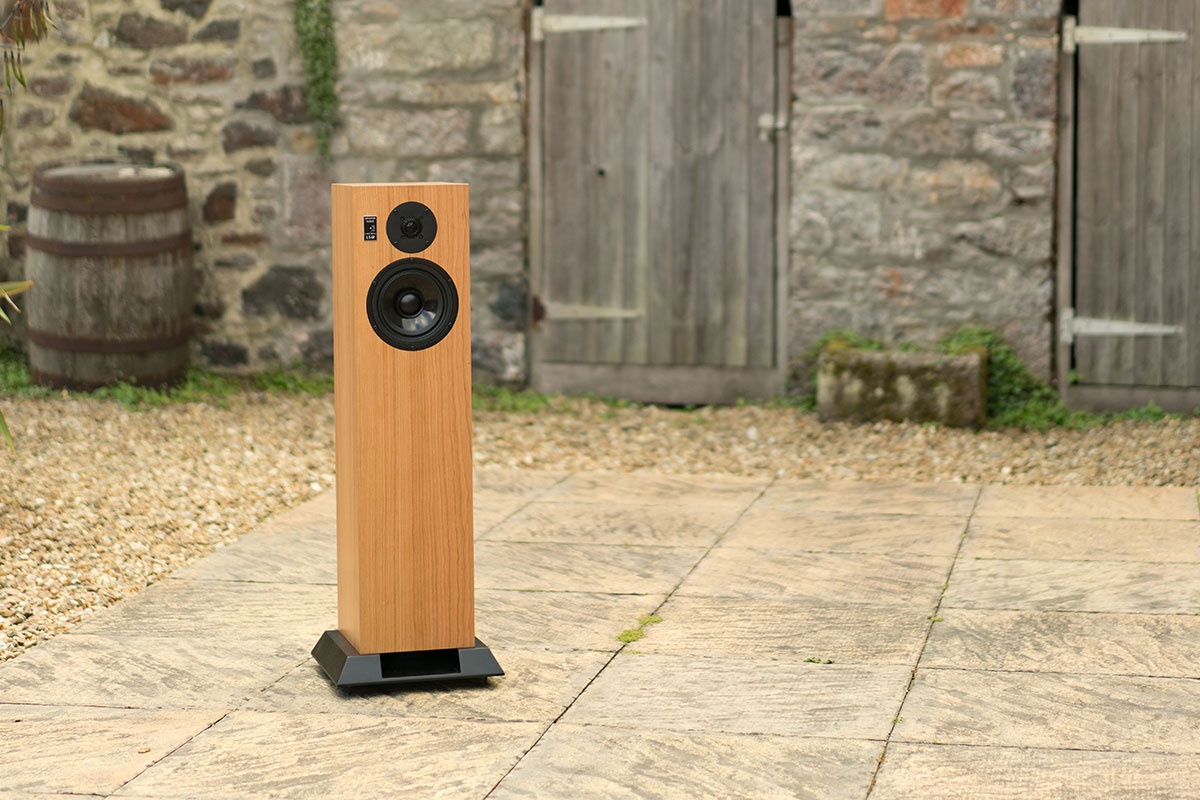

Building on the success of the LS6 monitor, the Chartwell LS6/f is a floor-standing loudspeaker system that combines a modern aesthetic with the open, uncoloured sound you'd expect from a Graham Audio system.

The integrated plinth provides a flow-optimised path for the airflow from the port, reducing distortion at high outputs, while the high-quality drive units and optimised crossover are carried over from the renowned LS6. The result is monitor-class audio quality in a compact and attractive package, hand-made in the UK.

Specifications

  • 2 way with reflex loading
  • Thin wall damped construction
  • Real wood veneer finish
  • Dimensions: 96cm x 32cm x 32cm (including plinth) (W x H x D)
  • Weight: 21kg
  • Frequency response: 45Hz to 20kHz, +/-2dB
  • Nominal impedance: 8Ω
  • Sensitivity: 87dB SPL (2.83V, 1m)
  • Maximum output: Over 100dB for a pair at 2m
  • Bass/midrange driver: 165mm polypropylene
  • Tweeter: 19mm dome tweeter
  • Recommended amplifier power: 50 to 150 watts unclipped programme
