Exposure XM9 Mono Power Amplifiers


The XM9 mono power amplifier is part of Exposure's recently introduced XM series of compact half width components. It is a high quality power amplifier with balanced and single ended inputs.

Call ‭0161 917 0642, email info@strictlystereo.com or contact us with a question about this product.

Price Match | Free Delivery | Free 30 Day Returns

Add To Cart

Product Details

  • Large 200VA custom-made toroidal power transformer
  • High quality all aluminium casework and extruded front panel
  • High quality resistors & capacitors used in the signal path
  • Cascode circuitry utilised for improved power supply immunity
  • Toshiba bipolar output transistors for dynamics and performance
  • 80 watts per channel into 8 ohms

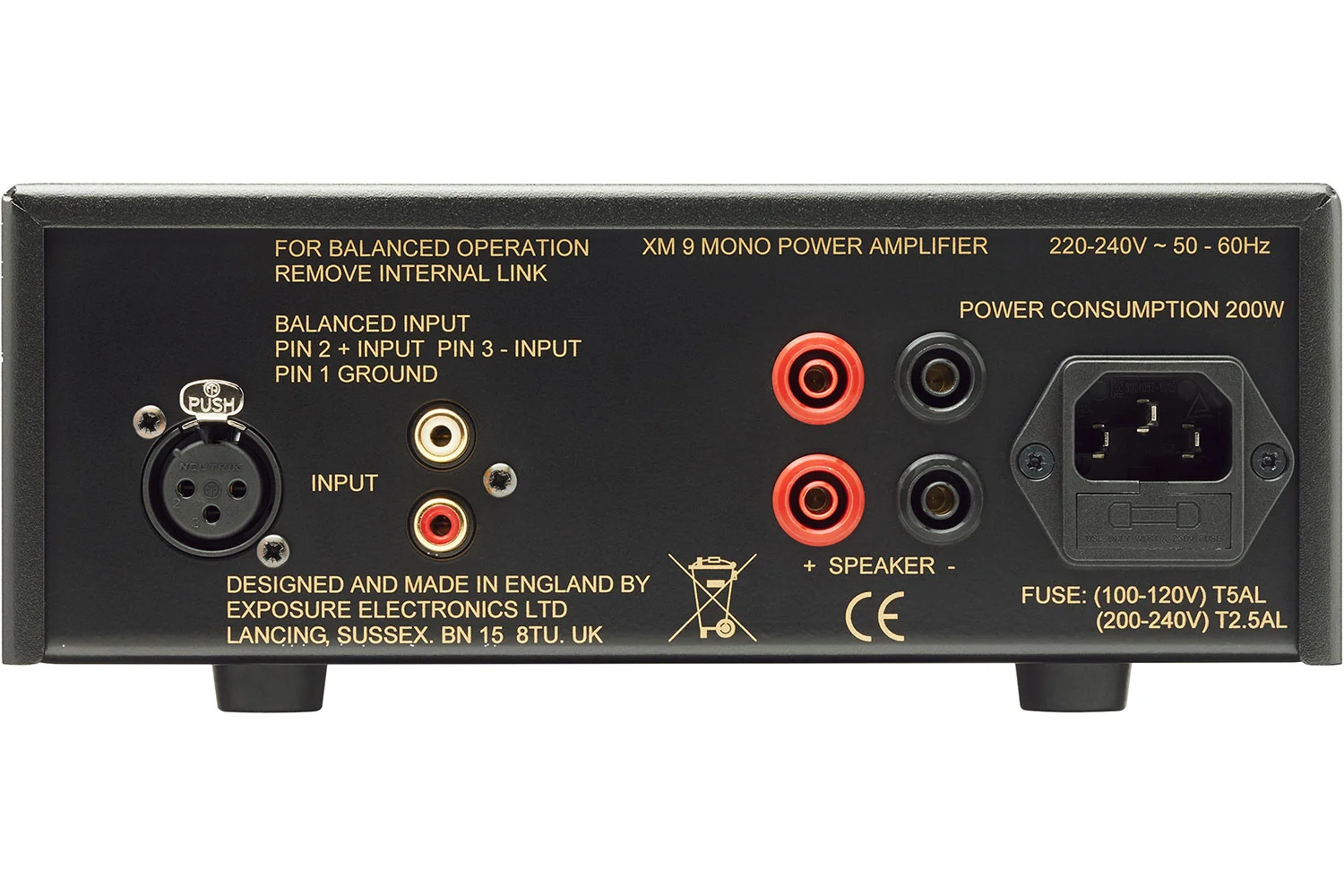

  • Unbalanced & balanced input selectable by internal link
  • DC coupled throughout
  • Electronic, non invasive current overload protection
  • Bi-wire speaker outputs using high quality shrouded sockets
  • Three year guarantee

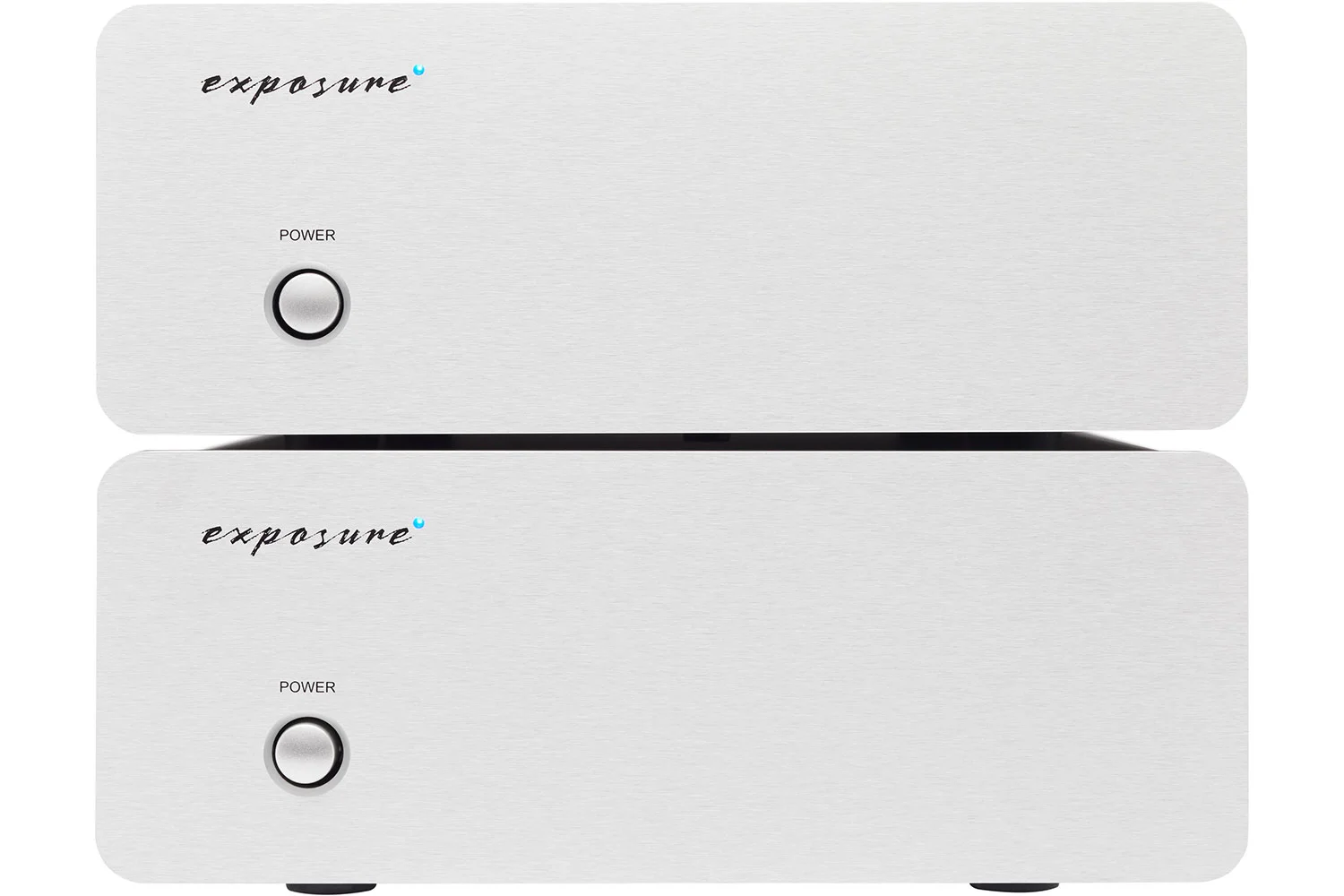

  • Available in black or titanium


  • Power Output (1KHz): 80 watts per channel into 8 ohms
  • Total Harmonic Distortion : @ 1KHz, rated power: <0.005%
  • Frequency Response: 20Hz - 20KHz +/-0.5dB
  • Input Sensitivity, Unbalanced ref 1KHz & rated output: 1.6V RMS
  • Gain: Unbalanced input x16, 24dB @ 1KHz
  • Input Impedance, Unbalanced: >77K ohms
  • Signal to Noise, Unbalanced, ref 1KHz & rated output: >95dB
  • Mains Supply: 110/120V or 220/240V @ 50/60Hz (factory set)
  • Power Consumption: 200W
  • Dimensions (WxHxD): 218mm x 89mm x 363mm (inc knob)
  • Net Weight (unpacked): 5kg
  • Gross Weight (packed): 6kg
