Exposure XM3 Phono Amplifier

Exposure XM3 Phono Amplifier

660.00

The XM3 phono amplifier is part of Exposure's brand new XM series of compact half width components. It includes support for both moving magnet and moving coil cartridges, and adjustable loading and gain via switches on the back panel.

Call ‭0161 917 0642, email info@strictlystereo.com or contact us with a question about this product.

Price Match | Free Delivery | Free 30 Day Returns

    Finish:
    Quantity:
    Add To Cart

    Product Details

    • Large 200VA custom made toroidal transformer for power supply
    • Multiple power supply capacitors in parallel for low ESR
    • All discrete transistor audio stages
    • High quality resistors & capacitors used in the signal path

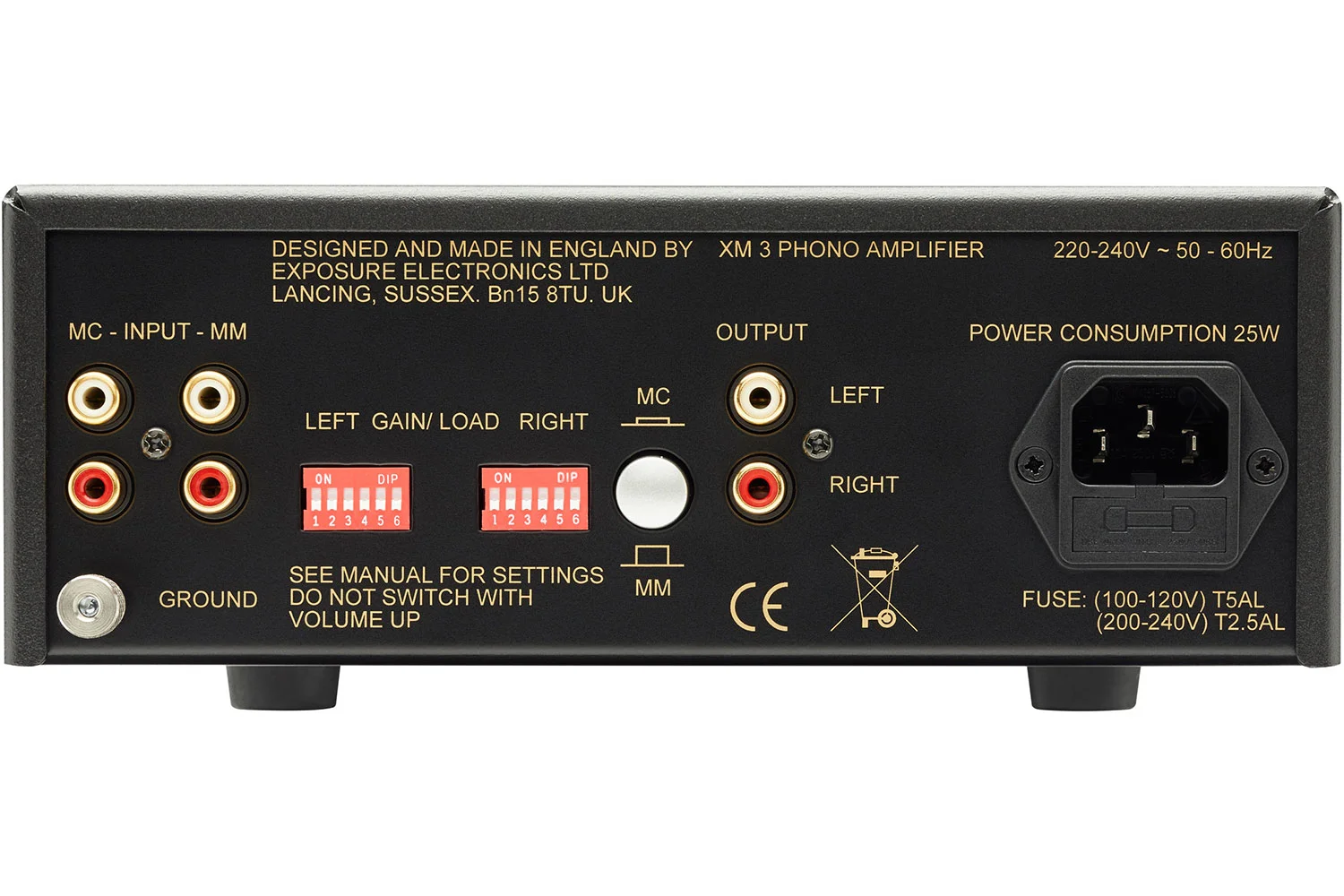

    • Separate MM & MC inputs selectable on the back panel
    • Adjustable loading & gain switches on the back panel
    • High quality all aluminium case work and extruded front panel
    • Three year guarantee

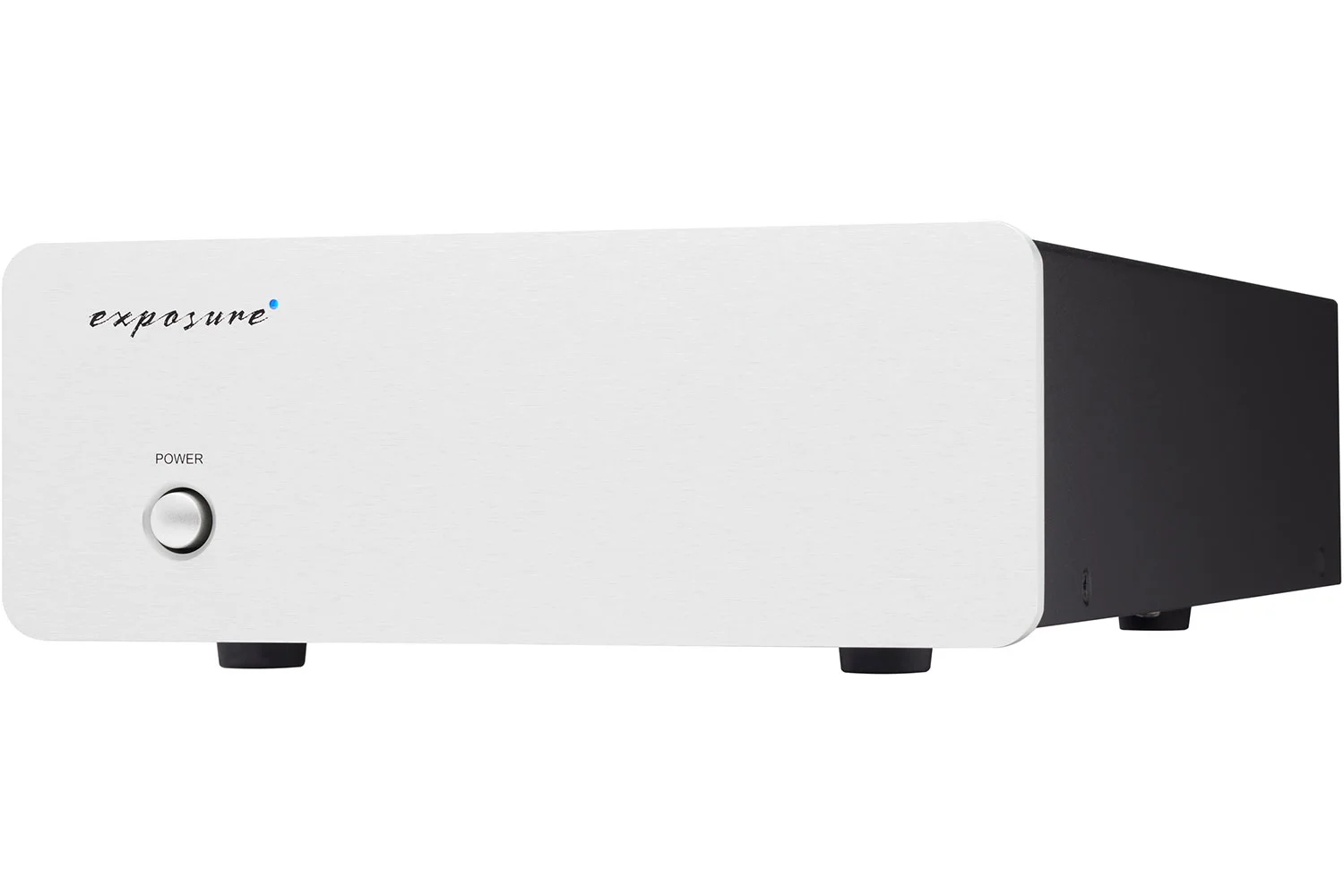

    • Available in black or titanium

    Specifications

    Moving Magnet Input

    • Sensitivity : 3.5mV input for 350mV output, 40dB gain setting
    • Signal to Noise ratio, ref 1KHz & 350mV out :
    • Gain Switch 4 ON : >70dB
    • Gain Switch 4 OFF : >78dB

    Moving Coil Input

    • Sensitivity : 350uV input for 350mV output, 60dB gain setting
    • Signal to Noise ratio, ref 1KHz & 350mV out : >67db A weighted. ALL gain switches (4-6)

    General Specifications

    • Frequency Response : 30Hz - 20Hz within +/- 0.25dB ref 1KHz with low frequency roll off below 30Hz
    • Total Harmonic @ 1KHz, ref 350mV out <0.025% MC Input :
    • Maximum Ouput Voltage : 7.8V RMS 1KHz
    • Output Impedance : 50 ohms
    • Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
    • Power Consumption : <25W
    • Dimensions (WxHxD) : 218mm x 89mm x 348mm
    • Net Weight (unpacked) : 4kg
    • Gross Weight (packed) : 5kg
