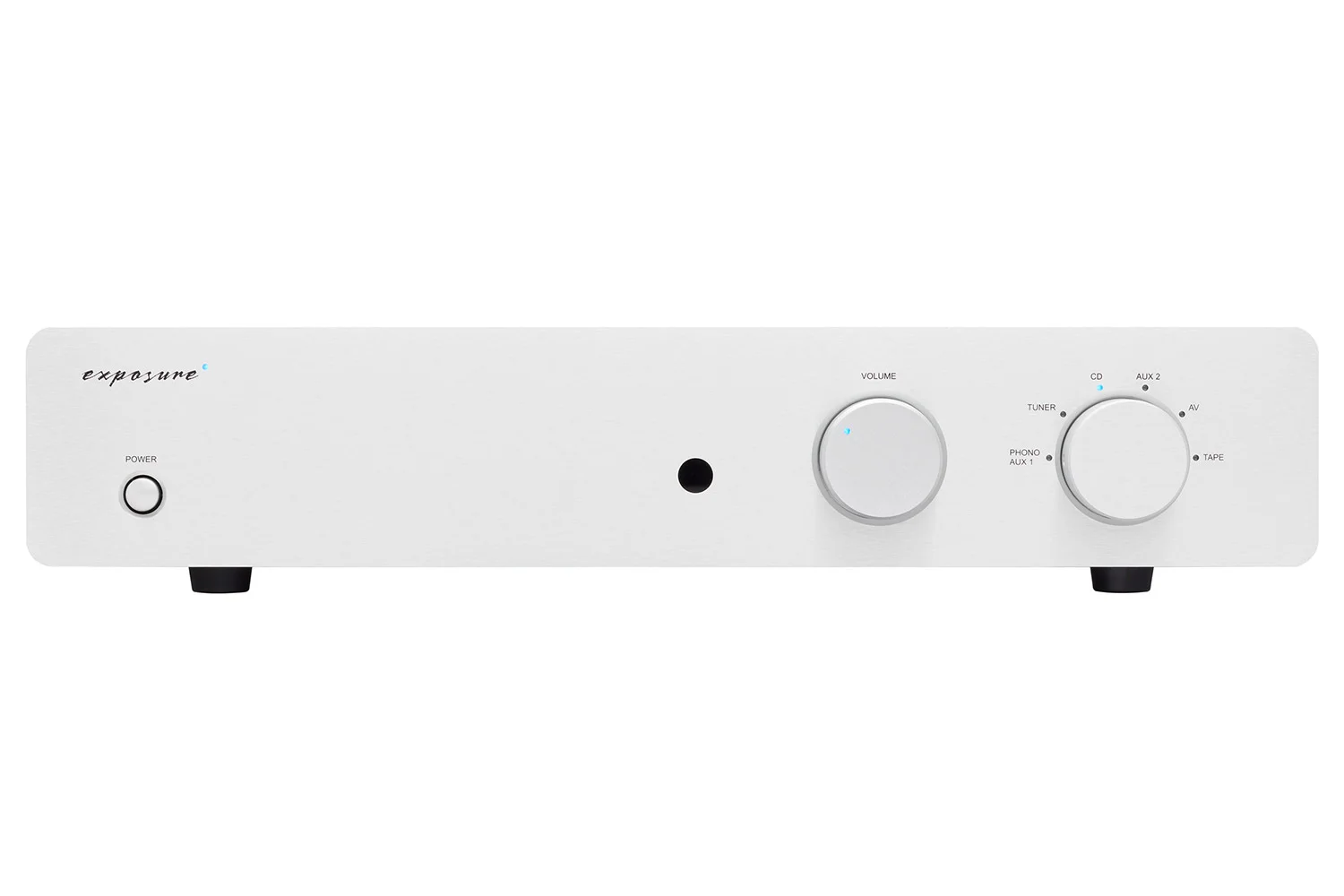

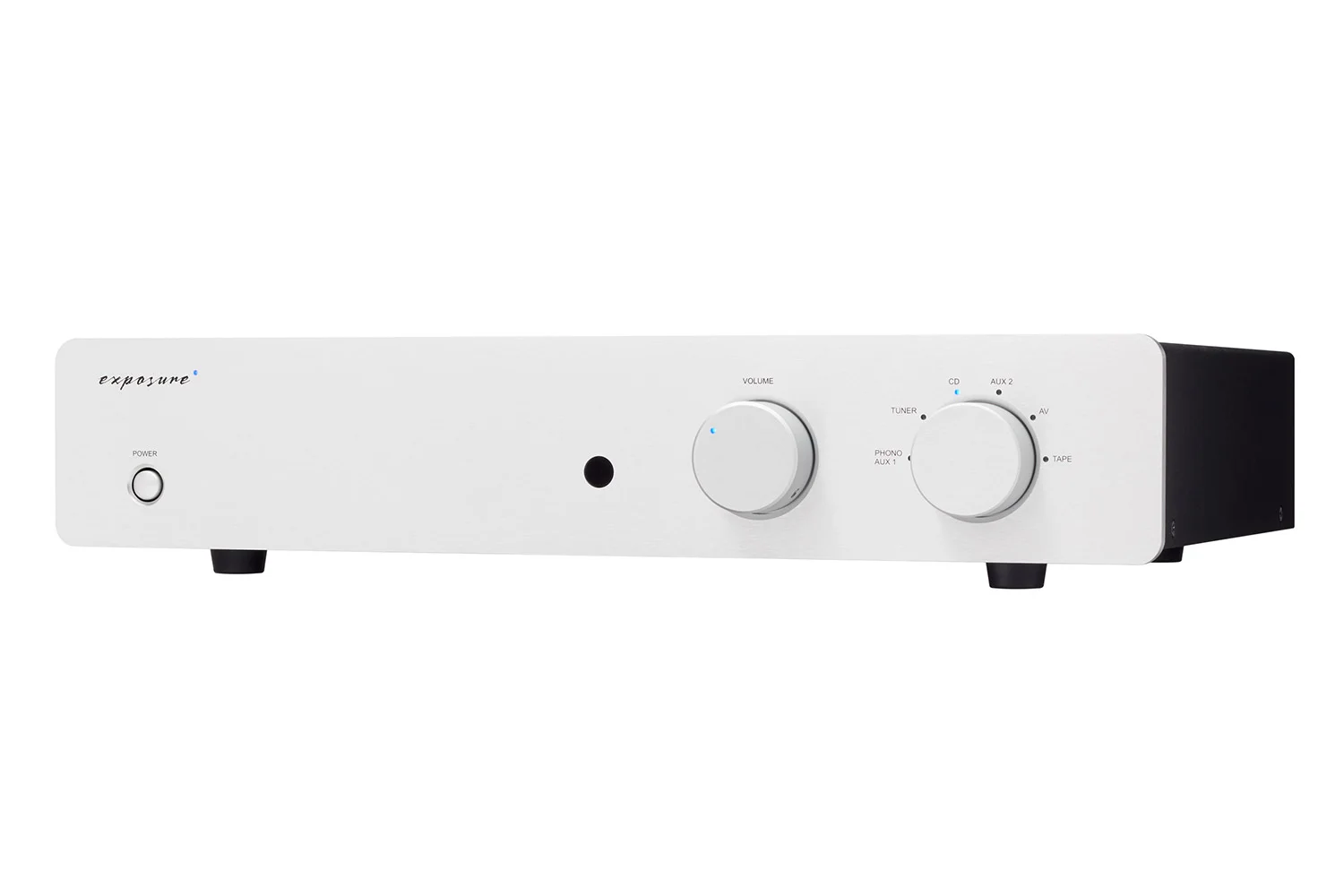

Exposure 5010 Preamplifier

Exposure 5010 Preamplifier

from 2,000.00

The Exposure 5010 preamplifier is part of the brand new 5010 series, which sits above the 3010 series in the Exposure range. The 5010 preamplifier is the perfect partner for the new 5010 mono power amplifiers. The 5010 preamplifier offers the option of a high quality built-in DAC with asynchronous USB and S/PDIF inputs, or a built-in MM or MC phono stage.

Call ‭0161 917 0642, email info@strictlystereo.com or contact us with a question about this product.

Price Match | Free Delivery | Free 30 Day Returns

Options:
Quantity:
Add To Cart

Additional Information

Product Details

  • Large custom made toroidal power transformer and multiple smoothing capacitors for power supply
  • Option to fit a MC or MM phono module OR plug in DAC option
  • 6 line inputs or 5 plus optional phono card, 2 main out (RCA), 1 XLR main out and 1 tape output
  • High quality relays used for input source selection
  • Full remote control of input selector, volume and mute
  • Audio output stages utilising discrete transistor class A output buffer
  • Balanced pre amp output, DC coupled
  • High quality all aluminium case work
  • Remote control
  • Three year guarantee

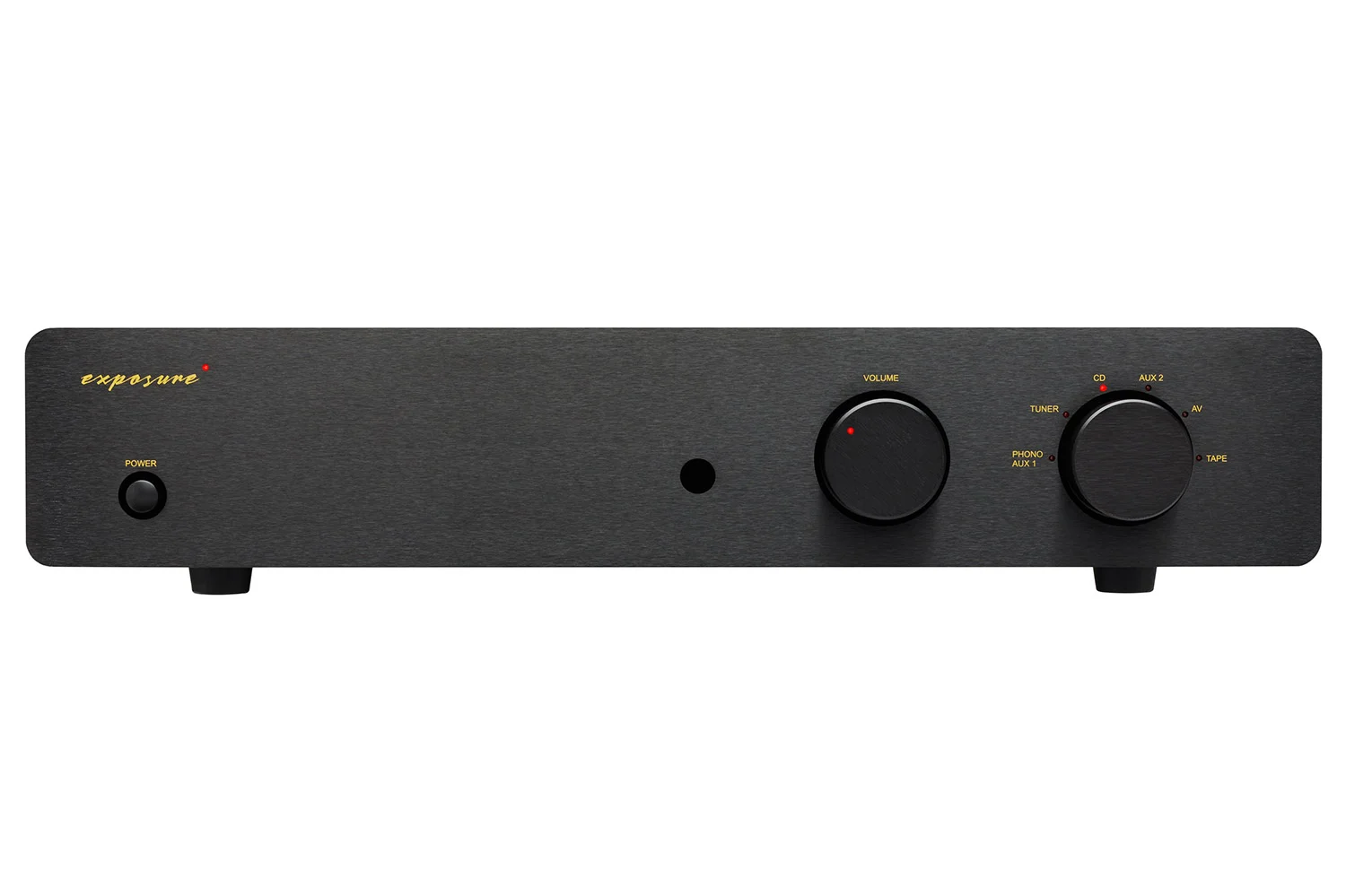

  • Available in black or titanium

Specifications

  • Gain (at 1KHz) : +9dB unbalanced output, +15dB balanced output
  • Sensitivity : 500mV
  • Maximum Output : >9V RMS unbalanced
  • Frequency Response : -3dB at 1Hz and 57KHz, ref 1KHz, max volume
  • Total Harmonic Distortion : <0.005% at 1.6V RMS output, 1KHz
  • Signal to Noise Ratio : >98dB, A weighted, ref 1.6V RMS output, 1KHz
  • Channel Separation : >60dB 20Hz to 20Hz (Typically >85dB at 1KHz)
  • Outputs : 2 pairs RCA, pre amp output, 1 pair for tape output
  • Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
  • Power Consumption : <25W
  • Dimensions - H x W x D : 90mm x 440mm x 300mm (inc knob)
  • Nett Weight (unpacked) : 6kg
  • Gross Weight (packed) : 8kg
