Exposure 5010 Mono Power Amplifiers

Exposure 5010 Mono Power Amplifiers


The Exposure 5010 mono power amplifiers are part of the brand new 5010 series which sits above the 3010 series in the Exposure range. They sound fantastic with the matching 5010 preamplifier.




Add To Cart

Additional Information

Product Details

  • Large custom made toroidal transformer and screw terminal smoothing capacitors for power supply
  • All bipolar transistor design using carefully selected parts
  • DC coupled throughout
  • Electronic, non-invasive overload protection circuit and thermal trip

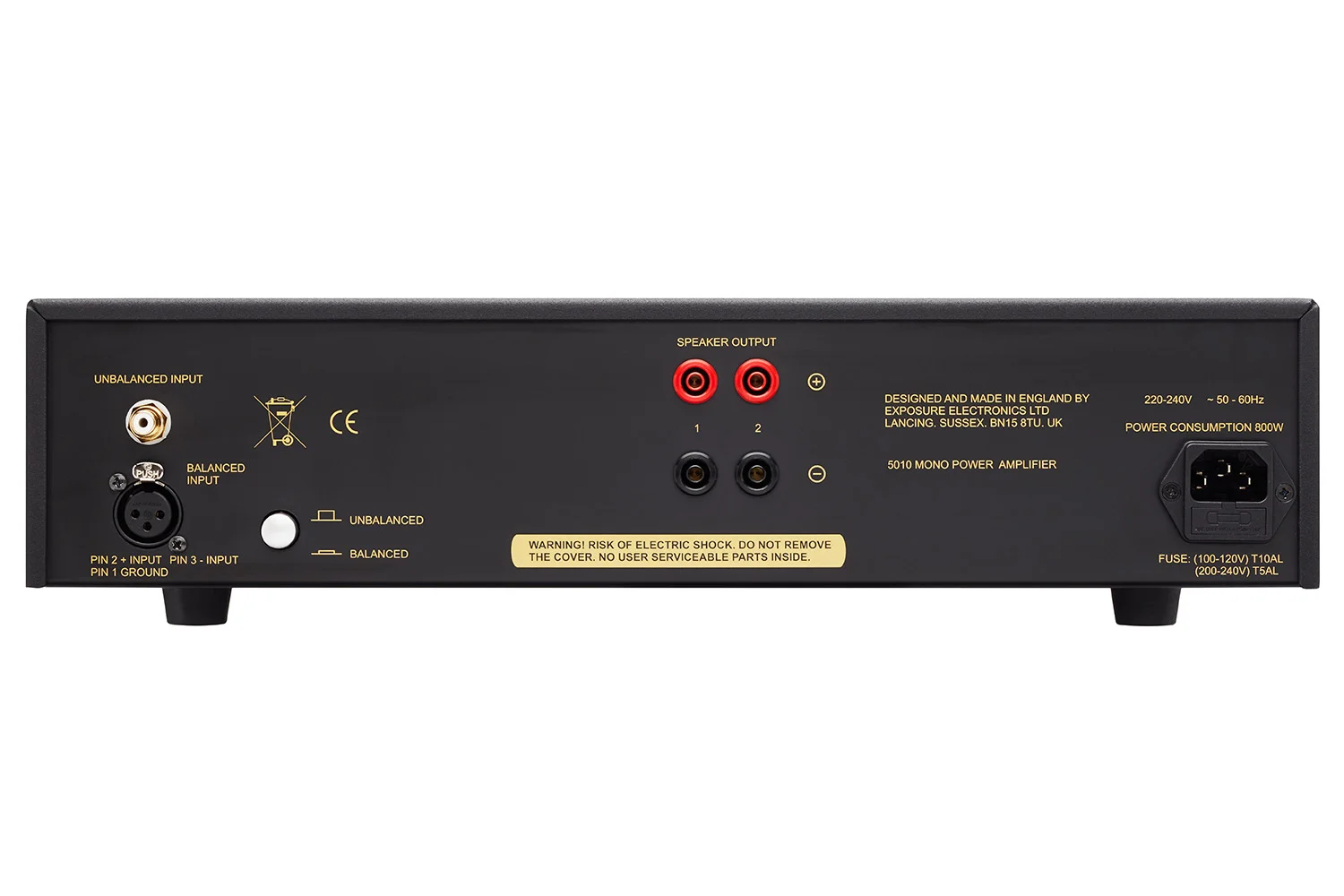

  • Bi-wire speaker outputs using high quality shrouded sockets
  • High quality all aluminium case work
  • Three year guarantee
  • Available in black or titanium


  • Power Output : 200W into 8 Ohms, 370W into 4 Ohms
  • Input Impedance : 75K Ohms at 1KHz, unbalanced input
  • Frequency Response : -3dB at 52KHz, ref. 1KHz, unbalanced input
  • Total Harmonic Distortion : 1KHz <0.015% at 200W into 8 Ohms, 1KHz <0.005% at 100W into 8 Ohms
  • Signal to Noise ratio : >120dB, A weighted, ref. 200W, 8 Ohms output,   >100dB A weighted, ref 1W, 8 Ohms output
  • Power Consumption : <800VA, 8 Ohms load
  • Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
  • Dimensions - H x W x D : 115mm x 440mm x 300mm
  • Nett Weight (unpacked) : 14kg
  • Gross Weight (packed) : 16kg
