Exposure 3010S2 Phono Amplifier

Exposure 3010S2 Phono Amplifier

950.00

The Exposure 3010S2 phono stage is available in MM or MC variants to match your preferred cartridge. It is intended to provide even higher performance and (in MC form) a greater degree of customisation than the built-in phono stages offered as options with Exposure amplifiers.

Call ‭0161 917 0642, email info@strictlystereo.com or contact us with a question about this product.

Price Match | Free Delivery | Free 30 Day Returns

Finish:
Option:
Quantity:
Add To Cart

Product Details

  • Large custom made toroidal transformer and smoothing capacitors for power supply
  • Option to fit a MC or MM phono module
  • All discrete transistor audio stages
  • Multiple stages of power supply regulation
  • High quality all aluminium case work
  • Three year guarantee

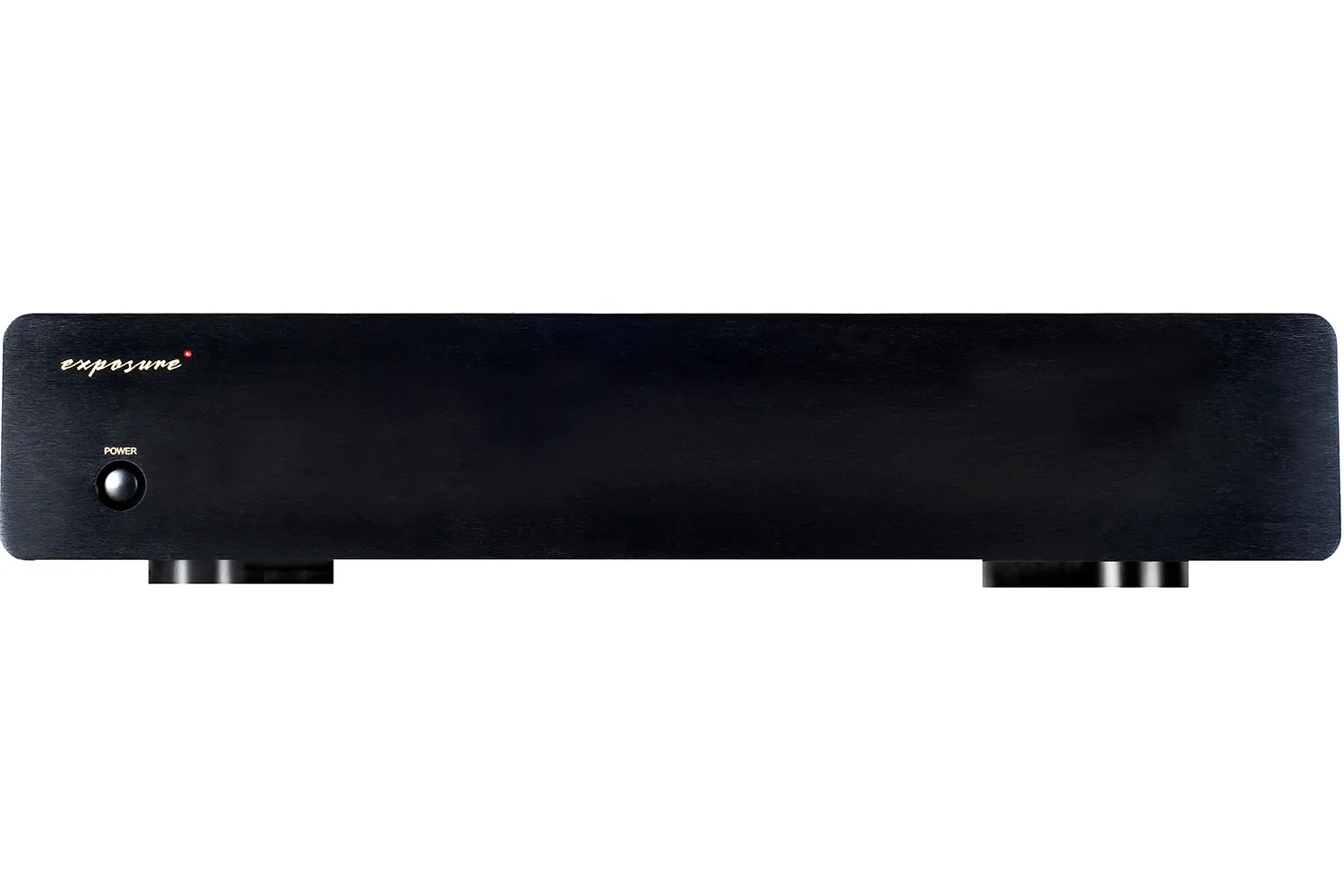

  • Available in black or titanium

Specifications

  • Input Impedance : MC adjustable from 100 Ohms to 1,500 Ohms by jumper link.  MM 47K Ohms
  • Sensitivity : MC 250uV in for 250mV out at 1KHz (adjustable by jumper link).  MM 2.5mV in for 250mV out at 1KHz
  • Frequency Response : +/-0.25dB from 30Hz to 20KHz, ref. 1KHz, with low frequency roll off below 30Hz
  • Total Harmonic Distortion : <0.01% at 1KHz
  • Power Consumption : <25VA
  • Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
  • Dimensions - H x W x D : 90mm x 440mm x 300mm
  • Nett Weight (unpacked) : 7kg
  • Gross Weight (packed) : 9kg
